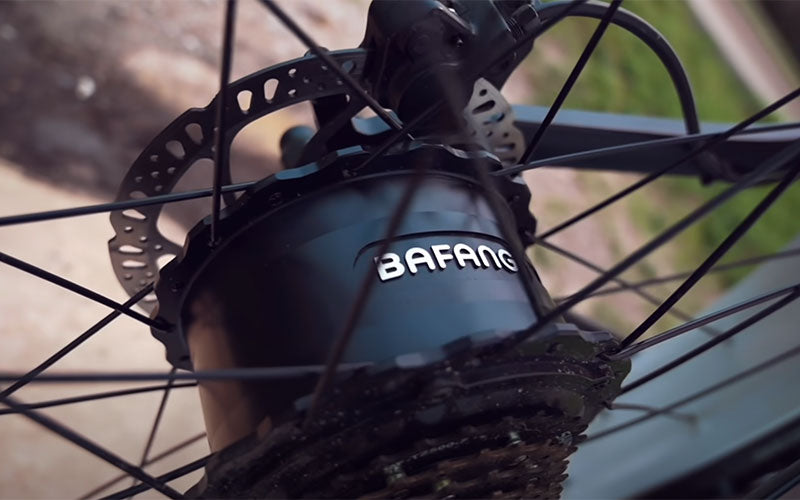

Bafang motor has become the standard for high-performance e-bikes, especially for cargo and fat e-bikes which require a more powerful motor to move heavier weight. Cyrusher utilizes Bafang motor for its higher-end line of fat tire e-bikes (XF800, XF900), in order to provide greater performance and a smoother experience.
With a max 1500 watts output, Bafang motor allows you to run at versatility speed, and on assisted mode, cruise around with little to no effort at speeds of up to 28 miles per hour. Its 80Nm torque makes it easier to climb the steeper hills.
Specifications
Core Data
| Position | Rear Motor |
| Wheel Diameter (Inch) | 26/27.5/28 |
| Construction | Gear drive |
| Rated Voltage (DCV) | 36/43/48 |
| n0 (Rpm) | 325 ; 245 |
| Rated Power (W) | 750 |
| nT(Rpm) | 290 ; 205 |
| Max Torque | 80 N.m |
| Efficiency (%) | ≥ 80 |
| Color | Black / Silver |
| Weight (kg) | 4.6 |
| Noise Grade (dB) | ＜55 |
| Operating Temperature | -20 - 45℃ |
Mounting Parameters
| Brake | Disc Brake |
| Installation Widths (mm / OLD) | 175 |
| Max. Housing Diameter (mm) | 158.5 |
| Cabling Route | Through Shaft, Right |
| Cable Length(mm), Connection Type | 250 G9.1 / G9.5 |
| Gearshift | Cassette |
| Spoke Specification | 36H*12G |
Tests & Certifications
| IP | IP X5 |
| Certifications | ROHS / CE |
| Salt Spray Test Standard(h) | 96 |
More about Bafang Motors: https://bafang-e.com/
